Specifications

Specifications1,2,5

Quasar UV80 Quasar UV60 Quasar
UV60-Turbo		 Quasar UV45 Quasar GR95 Quasar GR75
Wavelength 355 nm 355 nm 355 nm 355 nm 532 nm 532 nm
Output Power >80 W @ 200 kHz, 10 ns >60 W @ 200 kHz, 10 ns
>60 W @ 300 kHz, 10 ns		 >38 W @ 3 MHz, 2 ns >45 W @ 200 kHz, 10 ns
>45 W @ 250 kHz, 10 ns
>41 W @ 300 kHz, 10 ns		 >95 W @ 200 kHz, 10 ns >75 W @ 200 kHz, 10 ns
Maximum Pulse Energy or Burst Energy  >400 µJ (pulse) >300 µJ (pulse) >12 µJ (pulse) >225 µJ (pulse) >475 µJ >375 µJ
Repetition Rate Range 0–3.5 MHz 0–3.5 MHz 0–3.5 MHz 0–1.7 MHz 0–3.5 MHz 0–1.7 MHz
Optimized TimeShift™ Setting
(Nominal setup for beam optimization)		 200 kHz, 10 ns 300 kHz, 10 ns 3 MHz, 2 ns 300 kHz, 10 ns 200 kHz, 10 ns
Pulse-to-Pulse Stability <5%, 1s
Power Stability (after warm-up) <2%, 1σ, over 8 hours
Beam Pointing Stability <±25 µrad/°C
Peak Stability (Peak to Peak) (after warm-up) ±3% over 8 hours
Polarization 100:1, vertical 100:1, horizontal
Spatial Mode TEM00 (M2 <1.3)
Beam Divergence, full angle <0.3 mrad <0.45 mrad
Beam Asymmetry <1.10
Pulse Width, FWHM (TimeShift programmable)3 <2 ns to >100 ns <5 ns to >100 ns <2 ns to >100 ns <5 ns to >100 ns
Beam Diameter (D4s) 3.5 ±0.35 mm
Boresight Tolerance ±0.5 mm
±5 mrad

Operating Conditions

Quasar UV80 Quasar UV60 Quasar
UV60-Turbo		 Quasar UV45 Quasar GR95 Quasar GR75
Warm-up Time, typical <40 min Electrical ON, Diodes OFF;
<60 min from Electrical ON, Diodes OFF
Temperature Range 15–35°C
Altitude 0–2000 m
Humidity 10–80% non-condensing

Storage Conditions

Quasar UV80 Quasar UV60 Quasar
UV60-Turbo		 Quasar UV45 Quasar GR95 Quasar GR75
Temperature Range 0–50°C
Altitude 0–10,000 m
Humidity 10–80% non-condensing

Electrical and Chiller Requirements

Quasar UV80 Quasar UV60 Quasar
UV60-Turbo		 Quasar UV45 Quasar GR95 Quasar GR75
Heat Load (at laser head) <1900 W <1500 W
Water Temperature (laser inlet) 20°C ±1°C
Water Temperature Stability ±0.5°C
Water Flow Rate (at laser head) ≥9.5 l/min
Power Input 190–240 VAC, 2500 Watts Maximum, 50/60 Hz, single phase
Heat Load (at power supply) <500 W <400 W
Power Consumption <2400 W <1900 W

Physical Characteristics

Quasar UV80 Quasar UV60 Quasar
UV60-Turbo		 Quasar UV45 Quasar GR95 Quasar GR75
Laser Head Dimensions (L x W x H)4 39.4 x 14.7 x 9.3 in (1000 x 373 x 235 mm)
Laser Head Weight 200 lbs (90 kg)
Power Supply Dimensions (L x W x H) 21.1 x 19.0 x 6.9 in (536 x 483 x 176 mm)
Power Supply Weight 35 lbs (16 kg)
Cable Length 5 m

Other

Quasar UV80 Quasar UV60 Quasar
UV60-Turbo		 Quasar UV45 Quasar GR95 Quasar GR75
Complies with EU Directive 2015/863/EU;
China RoHS2 GB/T 26572---2011 and
SJ/T11364---2014		 Yes
User Replaceable Output Window Yes
Optional Safety Shutter Yes
Data Log (includes customer version as well) Long and short term recording for diagnostics and equipment maintenance

Footnotes for UV Lasers:

  1. Due to our continuous product improvement program, specifications may change without notice.
  2. Quasar UV80 nm test specs are at 10 ns at 200 kHz with the diode current set to achieve 81 W. Quasar UV60 and UV45 nm test specs are at 10 ns at 300 kHz with the diode current set to achieve 62 W for the Quasar UV60, and 42 W for the UV45. Quasar UV60-Turbo test specs are at 3 MHz 2 ns with diode current set to achieve 40 W.
  3. Quasar UV80, UV60 and UV45: nominal pulse width 10 ns. Quasar UV60-Turbo nominal and pulse width is 2 ns. Alternative/programmable pulse widths using TimeShift will change power and beam parameter performance. Contact Spectra-Physics for more information.
  4. Quasar UV80, UV60, UV60-Turbo and UV45 dimensions noted do not include the standard removable lifting hoist exoskeleton or the optionally removable lift handles.
  5. Quasar is a Class IV - High Power Laser, whose beam is, by definition, a safety and fire hazard. Take precautions to prevent exposure to the direct and reflected beams. Diffuse as well as specular reflections can cause severe skin or eye damage.

Footnotes for Green Lasers:

  1. Due to our continuous product improvement program, specifications may change without notice.
  2. All green wavelength test specs are at 10 ns at 200 kHz with the diode current set to achieve 97 Watts for the Quasar GR95 and 77 Watts for the GR75.
  3. Quasar GR95 and GR75: nominal pulse width is 10 ns.
  4. Quasar GR95 and GR75 dimensions noted do not include the standard removable lifting hoist exoskeleton or the optionally removable lift handles.
  5. Quasar is a Class IV - High Power Laser, whose beam is, by definition, a safety and fire hazard. Take precautions to prevent exposure to the direct and reflected beams. Diffuse as well as specular reflections can cause severe skin or eye damage.

Features

Overview

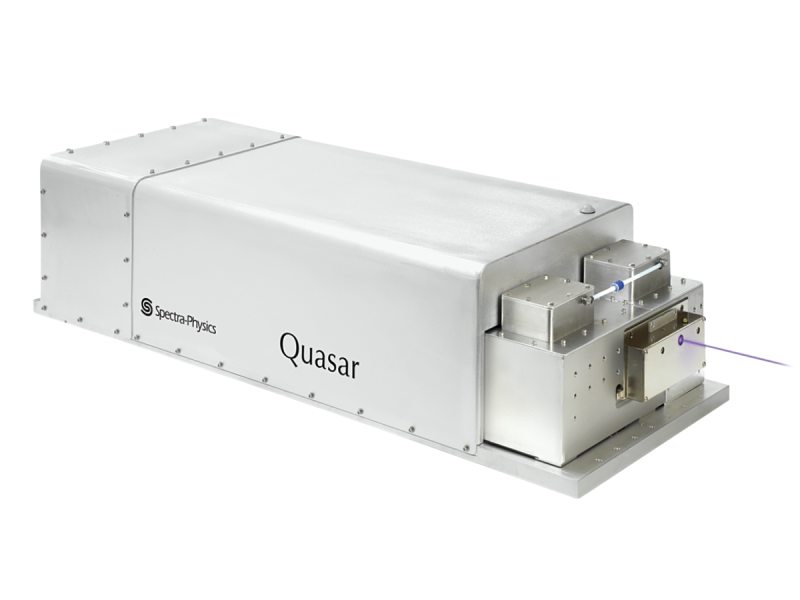

The Quasar series is an industry leader with high UV average power and energy at high rep rate for fast
micromachining. Quasar features novel TimeShift™ technology for programmable pulse profiles for the
ultimate in process speed, flexibility, and control.

Industry Leading Technology

Quasar combines advanced fiber laser, power amplifier and patented harmonics technologies to achieve industry leading results. This unique design exploits fiber laser flexibility and robustness to enable
TimeShift technology. Adding Spectra-Physics’ exclusive power amplifier, Quasar enhances this
flexibility at high output power levels. Finally, with Spectra-Physics’ patented harmonics, known for
exceptional stability, Quasar continues to provide an innovative synergy of power, flexibility and control
in a reliable 24/7 OEM laser for the most demanding applications.

Industry Leading Performance

The Quasar UV80 produces >80 W of UV output power at specification point 200 kHz 10 ns and >400 µJ pulse energy, complementing Spectra-Physics’ breakthrough Quasar UV45, UV60 and UV60-Turbo lasers. The Quasar UV80 operates over a wide repetition rate range from 0–3.5 MHz, with pulse widths from <2 ns to >100 ns. The Quasar UV60 produces >60 W of UV output power at specification point 300 kHz 10 ns. The Quasar UV60-Turbo, optimized for high repetition rate performance, produces >38 W of UV output power at specification point 3 MHz 2 ns. The Quasar UV60-Turbo is an excellent match for high speed polygon scanning systems. The Quasar GR95 produces >95 W of green output power, with similar pulse width and PRF range as the Quasar UV60, complementing Spectra-Physics’ breakthrough Quasar UV45 laser.

Reliable Continuous Operation

Quasar is designed, built, and tested to stringent quality standards for reliable continuous operation in demanding 24/7 manufacturing environments. The built-in ALPS (Active Laser Purification System) helps sustain that performance for long life. And finally, Quasar lasers' automatic data logging software monitors all key laser performance parameters over the life of the laser, providing a powerful service feature and product reliability tool. A customer version of this software is also available.

TimeShift Technology

Quasar is the first laser of this class to offer TimeShift technology, which enables pulse energy programmability in the time domain. By controlling the laser pulse (width and shape) in time and repetition rate, material removal and/or modification in micromachining becomes more efficient, thereby increasing process speed and quality. Utilizing TimeShift in conjunction with high UV or green power at a higher repetition rate means Quasar can process more materials faster, and with greater quality. TimeShift enables pulse width variation, as well as pulse splitting and burst mode operation. For the Quasar UV80, UV60, UV60-Turbo and GR95 models, pulse widths from <2 ns to >100 ns can be created at a constant repetition rate or conversely, maintain constant pulse width with varying repetition rate from 0 to 3.5 MHz. A set of standard TimeShift waveforms is provided with each Quasar. The TimeShift GUI, which enables users to develop custom waveforms, is available at an additional cost.

  • TimeShift Constant Pulse Width vs Pulse Repetition Frequencies (PRF): Unlike conventional Q-switched lasers, Quasar’s TimeShift technology can maintain constant pulse width over a wide range of repetition rates or pulse repetition frequencies (PRF). Constant pulse width means the peak power remains more constant, allowing for more consistent process results at higher speeds.
  • TimeShift Variable Pulse Width and Pulse Shaping: Varying the pulse width for a given PRF can be used to optimize the material interaction. By changing the energy and intensity within a pulse (pulse shaping), the heating or cooling of the material is further optimized.
  • TimeShift Pulse Splitting and Burst Mode: By splitting the pulses at a given PRF, the material is allowed to dissipate the heat or plasma such that more efficient material removal is possible. By altering the number, spacing, and relativity intensity of pulses within the burst, the spatial-temporal thermal profile in the work piece can be precisely tailored, increasing process speed and/or quality.

Compatible Power Sensors

To verify and analyze the output power of your Quasar laser, we recommend the Ophir F80(120)A-CM-17 (7Z07103) or F150(200)A-CM-16 (7Z07107) thermal power sensor and Centauri laser power meter.  Additional information on this laser measurement equipment can be found on the ophiropt.com website. Other Ophir sensors and meters may also be suitable for the Quasar depending on application. Ophir also works with laser system developers to achieve embedded beam diagnostics to monitor system performance as an OEM solution.

Recommended Optics & Optomechanics

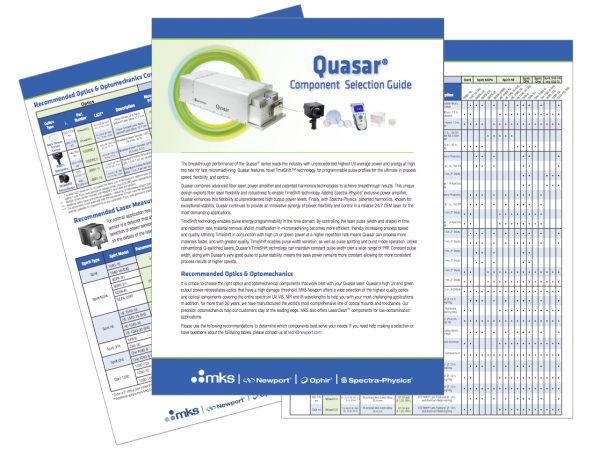

It is critical to choose the right optics and optomechanical components that work best with your Quasar laser. Quasar’s high UV and green output power necessitates optics that have a high damage threshold. MKS Newport offers a wide selection of the highest quality optics and optical components covering the entire spectrum UV, VIS, NIR and IR wavelengths to help you with your most challenging applications.
